LIGHT SPORT AIRCRAFT
READY TO FLY

from SGD 195,000.00

Find out more !

FRAS AERO AT-4 LSA

Light Sport Aircraft

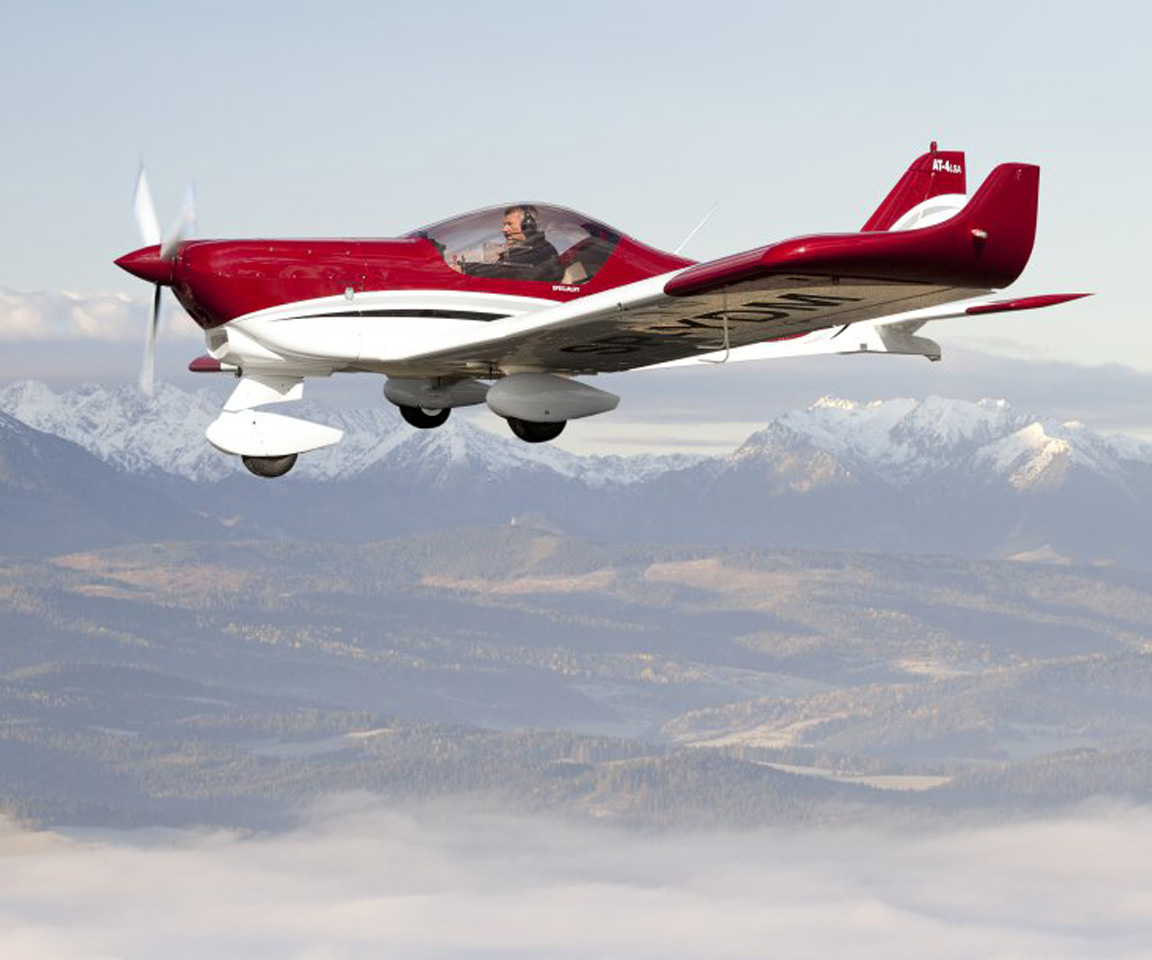

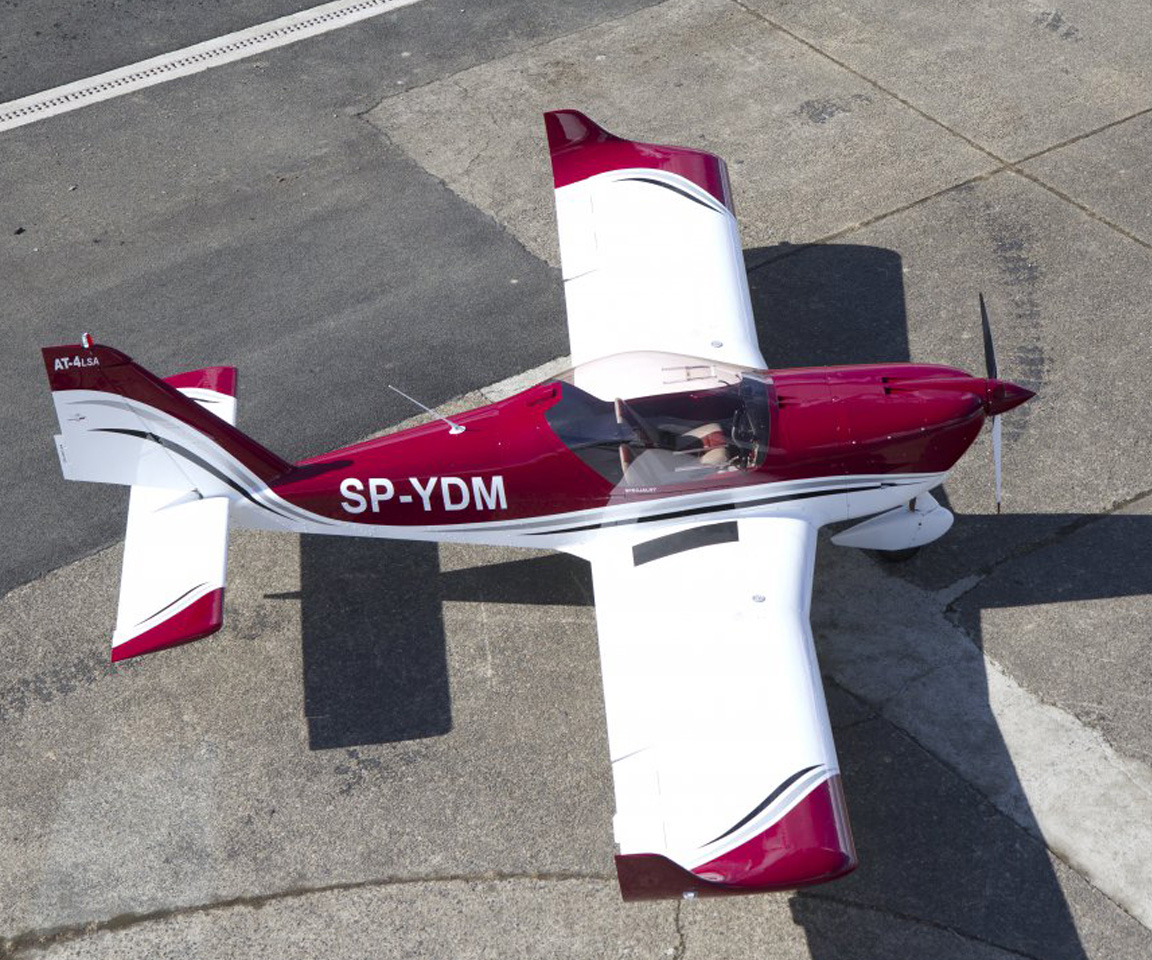

AT series aircraft is an all-metal, semi-stressed skin, developable surface construction with fairings and cowlings made of carbon/kevlar composite. The configuration consisting of a low-wing aircraft with side by side cockpit, equipped with dual controls, classic, robust landing gear plus superb aerodynamics, ensure high performance, good handling and exceptional flight characteristics. The AT-4 structure has a longer wingspin than AT-3, modified wing profile and spar, extended winglets and fillets between the wings and the fuselage.

EXPERIENCE

The design and certification team consists of sensoned professionals, including leading designers, excellent structural analysts, leading specialists in domestic and foreign certification processes, stress the engineers and experiences test pilots. The result of this blend is the only all-metal aircraft in its class, designed and manufactures with major aviation industry know-how and experience.

OUR PROMISE

Whether you desire is for EASA CS-VLA certified rugged low-wing trainer for a flying school or a sleek personal cross country LSA flyer to expend your horizons the AT series aircraft are the best all-metal aircraft in their class.

CRUISE SPEED

105

Knots

CLIMB RATE

965

Feet/Minute

CONSUMPTION

18

Liters/Hour

RANGE

1213

Kilometers

Specification

Engine

  • POWER Rotax 912ULS
  • TBO 2000 hours

Propeller

  • MAKE Sensenich
  • TYPE 3 Bladed Composite

Weight

  • MTOW 600 kg
  • Empty Weight 380 kg
  • Useful Load 220 kg
  • Fuel Capacity 2 x 50 L

Dimension

  • Wing Span 27,40 ft
  • Weight 20,51 ft
  • Height 7,32 ft
  • Wing Area 122,71 ft2

Performance

  • Cruising Speed 105 kts
  • Max Speed 116 kts
  • Va 90 kts
  • Vno 112 kts
  • Vne 133 kts
  • Vs 36 kts

  • Take off 15m/50ft 812 ft
  • Landing 15m/50ft 1329 ft
  • Climb Rate 956 ft/min
  • Range 1213 km
  • Ceiling 14435 ft
  • Load Factor 4.0/-2.0
  • Power Loading 6.0 kg/hp

EQUIPMENT

CONFIGURATION

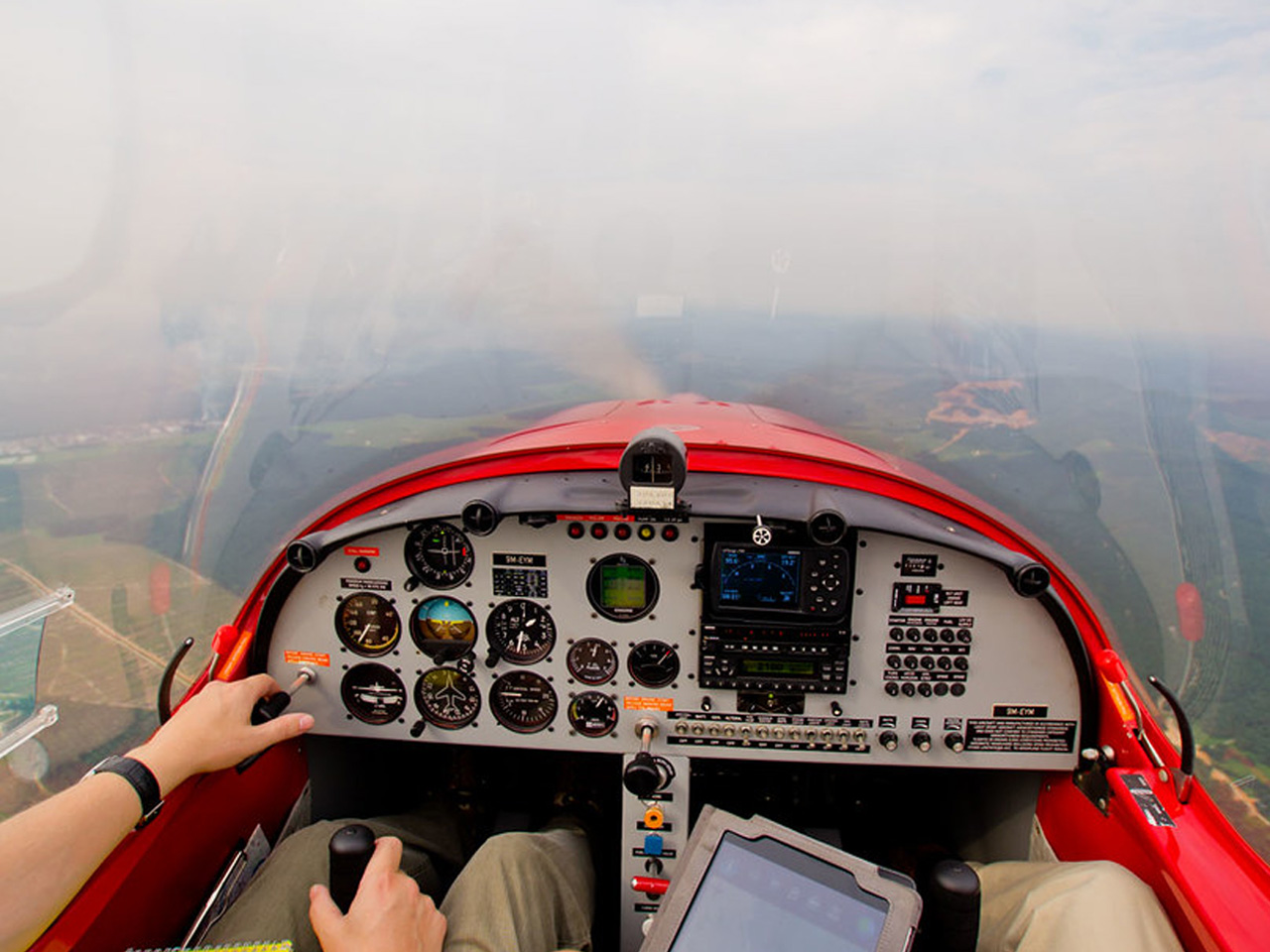

The AT-4 in the basic configuration is equipped with a high standard durable cockpit, leather upholstery, a smartly designed panel with dual throttles, ergonomic seats, top quality canopy, tyres & wheels as well as other components from internationally recognized and certified suppliers.

Call us Today !
+607-5995 290

For further information please feel free to call us and secure your seat for your program today ! Our operating hours is from 8am to 4pm and we are closed on Monday.

Locate Us

FRAS AERO
AT-4 LSA

Light Sport Aircraft

SGD 195,000.00
